In the rubber field industry, a tensile strength tester is an indispensable device for evaluating the mechanical properties of rubber materials.

I. Function Significance

1. Quality Assurance

• Rubber products are used in a wide range of applications, from tires to seals. The tensile strength tester ensures that the rubber materials meet the required quality standards. For instance, in tire manufacturing, rubber with insufficient tensile strength may lead to tire blowouts, making it crucial to accurately measure this property during the production process.

2. Product Design and Development

• Researchers and engineers rely on the data from tensile strength testers to develop new rubber formulations. By understanding how different additives and manufacturing processes affect the tensile strength, they can create rubber products with enhanced performance characteristics, such as better wear - resistance or elasticity.

II. Working Mechanism

1. Sample Preparation

• Rubber samples are typically cut into standardized shapes, often dumb - bell - shaped specimens. This shape ensures uniform stress distribution during the test. The dimensions of the sample, including the width and thickness, are precisely measured as they are used in subsequent calculations.

2. Testing Process

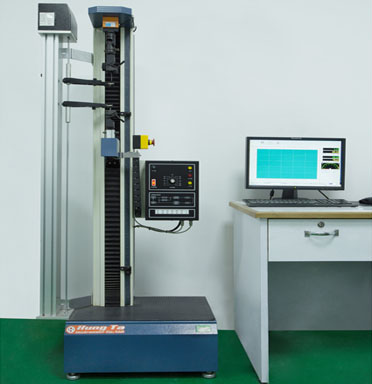

• The prepared rubber sample is firmly clamped between two grips of the tensile strength tester. One grip is stationary, while the other is attached to a moving component, usually driven by a servo - motor. As the motor activates, it applies a gradually increasing pulling force to the sample.

• A load cell within the tester measures the magnitude of this force. The load cell is highly sensitive and converts the mechanical force into an electrical signal that can be accurately quantified.

• Simultaneously, an extensometer or a similar displacement - measuring device monitors the elongation of the rubber sample. As the force increases, the sample stretches, and the extensometer records the change in length.

III. Data Output and Analysis

1. Tensile Strength Calculation

• The tensile strength of the rubber is calculated as the maximum force applied to the sample just before it breaks, divided by the original cross - sectional area of the sample. The resulting value is expressed in units such as megapascals (MPa) or pounds per square inch (psi).

2. Stress - Strain Curve

• The tester generates a stress - strain curve, which plots the stress (force per unit area) against the strain (change in length relative to the original length). This curve provides valuable insights into the rubber's behavior under tension. For example, the slope of the initial linear part of the curve represents the Young's modulus of the rubber, indicating its stiffness in the elastic region. The point at which the curve deviates from linearity shows the onset of plastic deformation, and the ultimate point on the curve represents the failure of the rubber.

3. Quality Assessment and Comparison

• The data obtained from the tensile strength tester is used to compare different rubber samples. Manufacturers can use this information to assess the quality of raw materials from different suppliers, or to evaluate the effectiveness of different manufacturing processes. It also helps in setting specifications for rubber products, ensuring consistent quality and performance across production batches.
