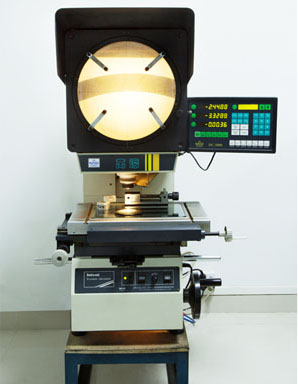

In the field of rubber products, projectors play a crucial role in dimensional measurement.

I. Application Significance

1. Quality Control

• Rubber products often have strict dimensional requirements. For example, rubber seals need to fit precisely into their designated grooves in machinery. Projectors enable manufacturers to accurately measure the dimensions of these products, ensuring that they meet the specified tolerances. This helps in preventing leaks, ensuring smooth operation of machinery, and enhancing the overall quality of the final products.

2. Production Efficiency

• By quickly and accurately measuring the dimensions of rubber products, projectors can reduce the time spent on manual measurement methods. This allows for faster inspection processes, enabling manufacturers to increase production throughput. In large - scale rubber production, this efficiency boost can significantly impact the bottom line.

II. Working Principle

1. Projection and Imaging

• A projector in this context projects a calibrated pattern of light onto the rubber product. This pattern can be a grid, cross - hairs, or other geometric shapes. The light reflects off the surface of the rubber product, and an imaging system, usually a high - resolution camera, captures the reflected image.

2. Measurement Algorithm

• Specialized software analyzes the captured image. It uses algorithms to compare the distorted pattern on the rubber product's surface with the original projected pattern. By calculating the differences in the pattern's geometry, the software can determine the dimensions of the rubber product. For example, if the projected grid lines appear distorted due to the curvature or irregularities of the rubber part, the software can calculate the exact dimensions based on the degree of distortion.

3. Calibration

• Regular calibration is essential to ensure accurate measurements. The projector is calibrated using a reference object with known dimensions. This calibration process accounts for any optical aberrations, such as lens distortion, and ensures that the measurements obtained from the rubber products are as precise as possible.

III. Types of Dimensions Measured

1. Linear Dimensions

• Projectors can measure lengths, widths, and heights of rubber products. For instance, in the production of rubber gaskets, the length and width of the gasket can be accurately measured to ensure proper fitment in the intended application.

2. Circular and Curvilinear Dimensions

• For rubber products with circular or curved shapes, such as O - rings or hoses, projectors can measure diameters, radii, and circumferences. This is crucial for maintaining the proper sealing or connection capabilities of these products.

3. Complex Geometric Features

• Some rubber products have complex geometric features, like stepped - shaped parts or parts with multiple holes. Projectors can measure the distances between different features, the diameters of holes, and the angles between surfaces, providing a comprehensive set of dimensional data for quality control and production adjustment.
